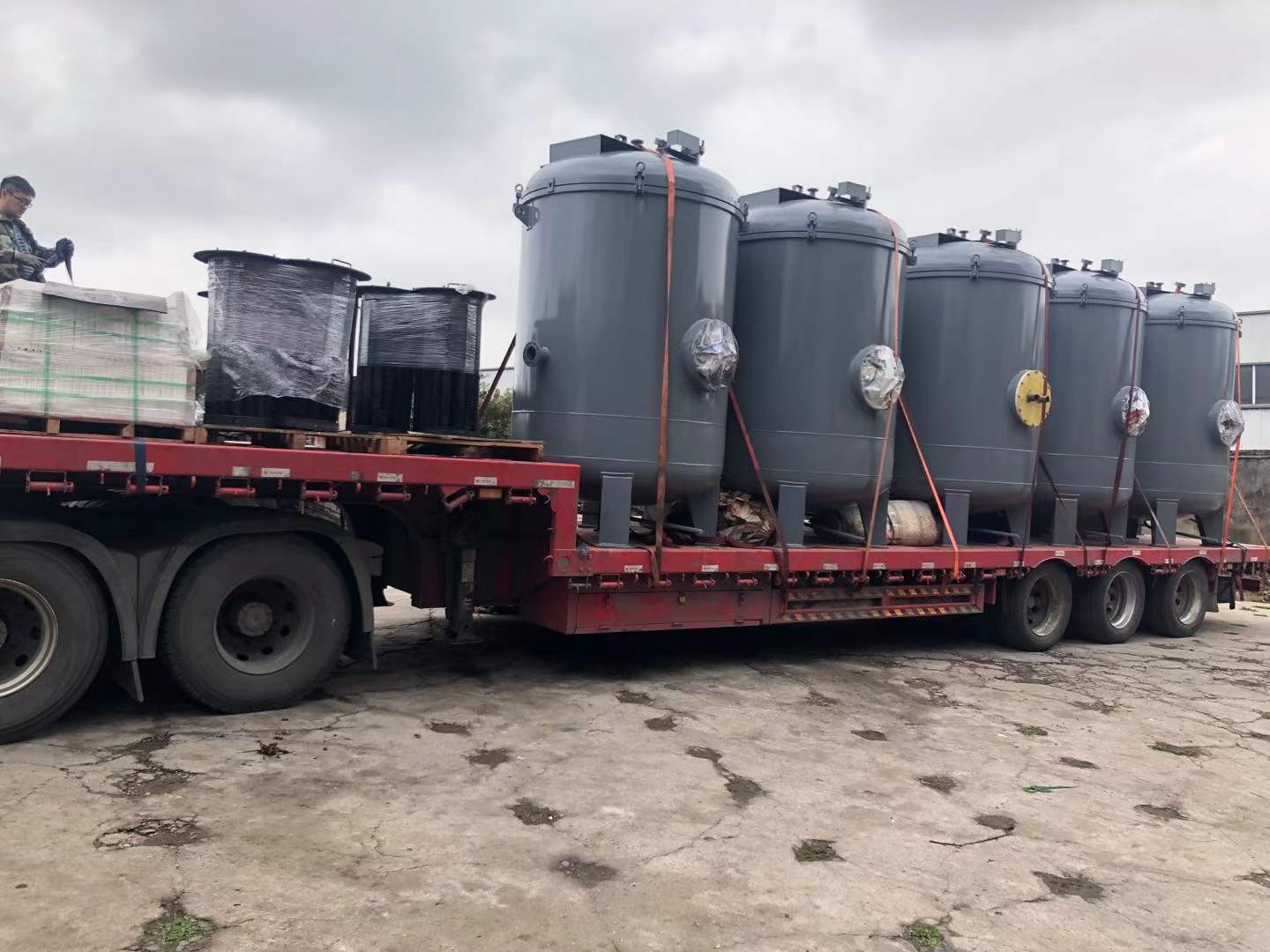

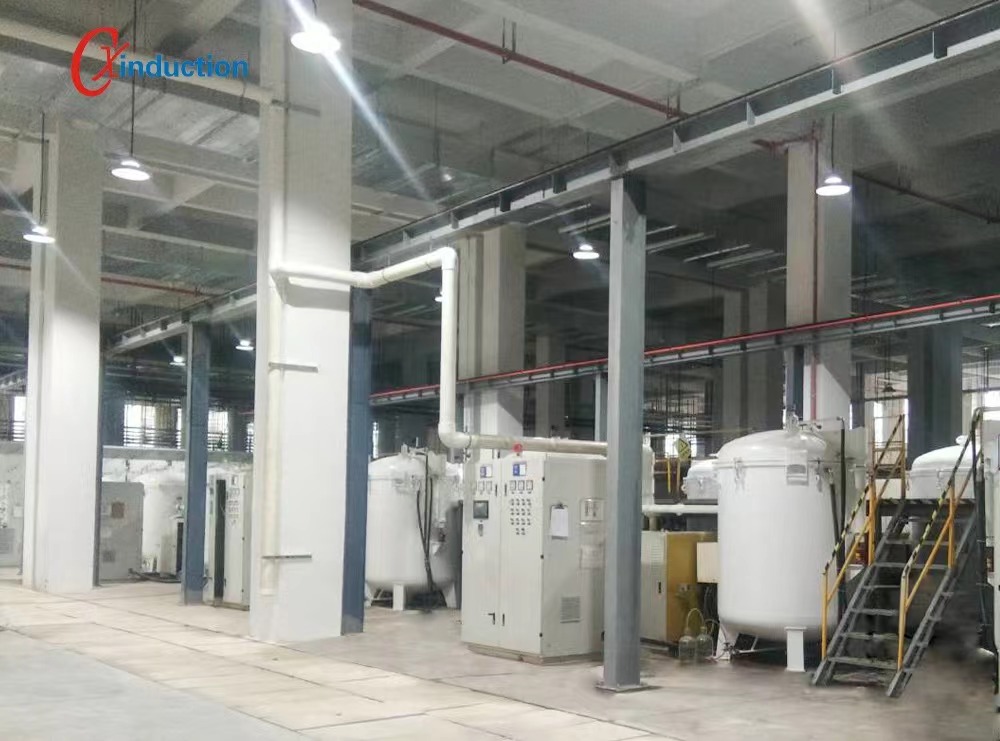

VERTICAL GRAPHITIZATION FURNACE

Vertical Graphitization Furnace Vertical Graphitization Furnace Vertical Graphitization Furnace


Product Introduction

High temperature graphite furnace CX-GF…/…VT and CX-GF…/…VB series are vertical top and bottom loading batch type induction heating furnaces with round hot zone shape.
Maximum operating temperature of 3000°C can meet all demands in carbon material’s graphitization treatment.
3000°C graphite furnaces use medium frequency induction heating method. A water cooled induction coil installed inside the furnace. At the center of the coil, there is a graphite crucible as the susceptor for the induction current, surrounded by carbon felt as the insulation material.
Vertical bottom loading design is developed for easy loading/unloading of heavy sample into the furnace.

Maximum operating temperature of 3000°C can meet all demands in carbon material’s graphitization treatment.
These furnaces use medium frequency induction heating method. A water cooled induction coil installed inside the furnace. At the center of the coil, there is a graphite crucible as the susceptor for the induction current, surrounded by carbon felt as the insulation material.
Vertical bottom loading design is developed for easy loading/unloading of heavy sample into the furnace.


Applications

Sintering and Graphitization treatment of carbon materials, synthetic graphite film (Polyimide film and abbreviated PI film), heat conductive materials, carbon fiber rope, carbon fiber, C/C composites, Graphene heat treatment, Lithium battery negative electrode materials heat treatment, VGCF negative material treatment, purification and de-ironing process of Carbon Nanotube (CNT), other materials which can be sintered or melted in graphite hot zone (carbon included environment).

Features

General Features

• 3000°C extreme temperature which can meet demands for all kinds of graphitization processes.
• Vertical Top Loading and Vertical Bottom Loading with single chamber or multi chambers design for high production capacity. The shell and door are water-cooled jacketed. The outer layer of the furnace shell is made of carbon steel while the inner layer is made of SUS304 stainless steel. The inner stainless steel wall features long time uses without rusting as well as less adsorption of induction eddy currents in comparison to plain carbon steel.
• Stable hydraulic lifting system for the chamber door or bottom. Ground guide rail and skip car for bottom loading models.
• Induction coil covered by high quality alumina coating in order to avoid short circuit between coil and carbon felt.
• High vacuum pneumatic valves equipped with position indicator in order to automatic control of the vacuum and gas supply system.
• Over-temperature, over-pressure, gas status, water lack and power failure alarms and automatic mechanical interlock for over-pressure protection.
• All the running parameters are stored in the PLC system. All stored parameters can be transferred into your personal computer through a USB port.
• High precision smart temperature controller which can store 20 programs with total 400 segments.
• International famous brand high accuracy pyrometer with temperature measuring range of 1000~3200°C or 600~3100°C. The accuracy of temperature measurement is 0.2~0.75%.
• Fully automatic PLC monitoring system.
• Remote operation, failure diagnosis and software upgrading.
• High automatic equipment, all the on/off switch components and all the running parameters are stored with the digital format in the PLC date base, there have communication interface for the convenience of customer intervene.
• Patented design for solving the erosion problem of the graphite crucible of the horizontal graphitization furnaces. Our patented design, increased the crucible life in a way that, crucible erosion be less than 5 mm after 60 batches treatment.
• Special designed induction coil which completely solve the insulation challenge of induction coil at high temperature.
• Patented designed multi layers insulation which increase the power saving efficiency of the hot zone and result in better temperature uniformity.

 Optional Features

• High Vacuum System: Vacuum and high vacuum operation of these furnaces is only possible up to 2200°C
• Gas Purification System
• Closed Loop Cooling Water System
• Distributed Control System (DCS)
• Multi chambers (with only one control cabinet for all chambers)

 Technical Details of Vertical Top Loading Models

Model CX-GF20/30VT CX-GF30/40VT CX-GF40/100VT CX-GF50/100VT CX-GF60/100VT CX-GF60/160VT
Max Working Temperature 3000°C
Usable Space (mm) W×H×L Φ200×300 Φ300×400 Φ400×1000 Φ500×1000 Φ600×1000 Φ600×1600
Max. Loading Capacity 9 28 125 196 282 452
Temperature Uniformity
(ΔT between 1000°C and 2200°C)
±10°C
Max. Heat-up Rate (CEDRT)* 15°C/min (RT~1500°C), 10°C/min (1500°C~2500°C), 5°C/min (2500°C~3000°C)
Heating Power 100 KW 160 KW 200 KW 250 KW 300KW 350 KW
Frequency 2000 Hz 2000 Hz 2000 Hz 1500 Hz 1500 Hz 1500 Hz
U ltimate Vacuum (CEDRT)*

1.2×10-3mbar

Optional High Vacuum (CEDRT)*

5×10-5 mbar

Pressure Rise 6.7×10-3 mbar/hr
Working Atmosphere High Vacuum (Optional) / Vacuum / Inert Gas (Ar or N2)
Vacuum and high vacuum atmosphere is only permitted up to 2200°C.
Supply Voltage 3P, 380V, 50Hz/60Hz
Cooling Water Pressure 1.5~2.5 bar
Cooling Water Temperature ≤28 °C

*CEDRT: Clean, Empty, Dry, Room Temperature Furnace

 Technical Details of Vertical Bottom Loading Models (One System with One Chamber)

Model CX-GF-HV40/60VB CX-GF40/100VB CX-GF50/100VB CX-GF60/100VB CX-GF60/160VB
Max Working Temperature 3000°C 3000°C 3000°C 3000°C 2650°C
Usable Space (mm) W×H×L Φ400×600 Φ400×1000 Φ500×1000 Φ600×1000 Φ900×1600
Max. Loading Capacity 75 125 196 282 452
Temperature Uniformity
(ΔT between 1000°C and 2200°C)
±10°C
Max. Heat-up Rate (CEDRT)* 15°C/min (RT~1500°C), 10°C/min (1500°C~2500°C), 5°C/min (2500°C~3000°C)
Heating Power 160 KW 200 KW 250 KW 300 KW 350 KW
Frequency 2000 Hz 2000 Hz 1500 Hz 1500 Hz 1500 Hz
U ltimate Vacuum (CEDRT)* 1.0×10-5 mbar

1.0×10-3mbar

Optional High Vacuum (CEDRT)* Standard Feature

5×10-5 mbar

Pressure Rise 1.33×10-2 mbar/hr
Working Atmosphere High Vacuum (Optional) / Vacuum / Inert Gas (Ar or N2)
Vacuum and high vacuum atmosphere is only permitted up to 2200°C.
Supply Voltage 3P, 380V, 50Hz/60Hz
Cooling Water Pressure 1.5~2.5 bar
Cooling Water Temperature ≤28 °C


*CEDRT: Clean, Empty, Dry, Room Temperature Furnace

 Technical Details of Vertical Bottom Loading Models (One System with Two Chambers)

Model CX-GF40/100VT-II CX-GF50/100VT-II CX-GF60/100VT-II CX-GF90/160VT-II
Max Working Temperature 3000°C 2650°C
Usable Space (mm) W×H×L Φ400×1000 Φ500×1000 Φ600×1600 Φ900×1600
Max. Loading Capacity(L) 125 196 452 1017
Temperature Uniformity
(ΔT between 1000°C and 2200°C)
±10°C
Max. Heat-up Rate (CEDRT)* 15°C/min (RT~1500°C), 10°C/min (1500°C~2500°C), 5°C/min (2500°C~3000°C)
Heating Power 200 KW 250 KW 350 KW 500 KW
Frequency 2000 Hz 1500 Hz 1500 Hz 1000 Hz
Ultimate Vacuum (CEDRT)* 1.2×10-3 mbar
Optional High Vacuum (CEDRT)* 5×10-5 mbar
Pressure Rise 6.7×10-3 mbar/hr
Working Atmosphere High Vacuum (Optional) / Vacuum / Inert Gas (Ar or N2)
Vacuum and high vacuum atmosphere is only permitted up to 2200°C.
Supply Voltage 3P, 380V, 50Hz/60Hz
Cooling Water Pressure 1.5~2.5 bar
Cooling Water Temperature ≤28 °C

*CEDRT: Clean, Empty, Dry, Room Temperature Furnace

 Technical Details of Vertical Bottom Loading Models (One System with Four Chambers)

Model CX-GF50/100VT-IV CX-GF60/160VT-IV CX-GF90/160VT-IV
Max Working Temperature 3000°C
Usable Space (mm) W×H×L Φ500×1000 Φ600×1000 Φ900×1600
Max. Loading Capacity(L) 196 452 1017
Temperature Uniformity
(ΔT between 1000°C and 2200°C)
±10°C
Max. Heat-up Rate (CEDRT)* 15°C/min (RT~1500°C), 10°C/min (1500°C~2500°C), 5°C/min (2500°C~3000°C)
Heating Power 250 KW 350 KW 500 KW
Frequency 1500 Hz 1500 Hz 1000 Hz
Ultimate Vacuum (CEDRT)* 1.2×10-3 mbar
Optional High Vacuum (CEDRT)* 5×10-5 mbar
Pressure Rise 6.7×10-3 mbar/hr
Working Atmosphere High Vacuum (Optional) / Vacuum / Inert Gas (Ar or N2)
Vacuum and high vacuum atmosphere is only permitted up to 2200°C.
Supply Voltage 3P, 380V, 50Hz/60Hz
Cooling Water Pressure 1.5~2.5 bar
Cooling Water Temperature ≤28 °C

*CEDRT: Clean, Empty, Dry, Room Temperature Furnace
