CARBON FIBER FELT

Carbon Felt Graphite Felt


Features

Low ash content / High carbon content / Low gas evolution
Excellent heat insulation / Low thermal conductivity
Long life time / Good anticorrosion / High oxidation resistance
Easy Handling / Good Strength
• Excellent chemical stability
• Good electrical conductivity
• Even thickness
• Long life cycle


Applications

Heat insulation materials
Electrical elements
Absorptive materials
Reinforcing structure for C/C composite components and other products .Etc

We are primarily focused on serving the heat treatment industry. Soft Carbon and Graphite Felts are used as insulation in vacuum,high temperature furnace and protective atmosphere (non-oxidizing) furnaces and process equipment used in the heat treating, semi-conductor, ceramic, aerospace, defense, bio-medical appliance, and sintered metals industries.

Carbon felt Property Measured Value

ITEM INDEX
Products Carbon fiber felt
Bulk density(g/cm3) 0.14~-0.17
Carbon (%) ≥98.5
Fhemal conductivity(1150C)W/mk 0.12~.18
Tensile Strength(Mpa) 0.15
Crushing stress at 10% compression( N/cm2) 8~12
Ash (%) ≤0.05
Processing temperature (C) 1300
Length(m) 9~12
Wide(mm) 1000-1300
Thickness(mm) 3、5、8、10
in the air(℃) ≤400
in the vacuum(℃) ≥1500
in the inert atmosphere(C)) ≥1800


Graphite felt Property Measured Value


>
ITEM Graphite Felt
Bulk density(g/cm3) 0.12~0.14
Carbon (%) ≥99.9
Carbon (%) 0.08-0.14
Hermal conductivity(1150t)W/mk 0.14
Tensile Strength(Mpa) 8~10
Crushing stress at 10% compression( N/cm2) ≤0.005
Ash (%) 2200
Processing temperature (C) 9~12
Length(m) 1000-1300
Wide(mm) 1000-1300
High (mm) 3、5、8、10
in the air(℃) ≤400
in the vacuum(℃) ≥2200
in the inert atmosphere(C)) ≥3400

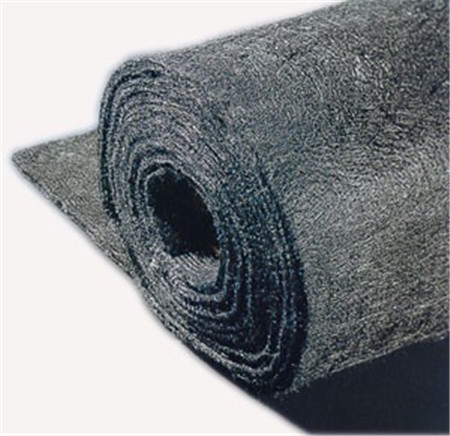

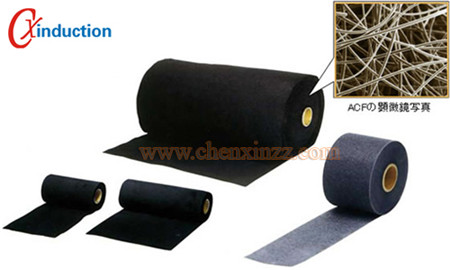

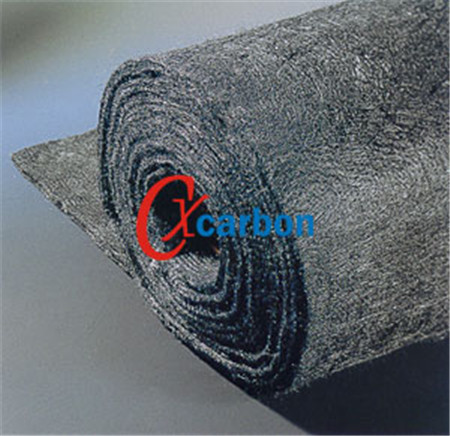

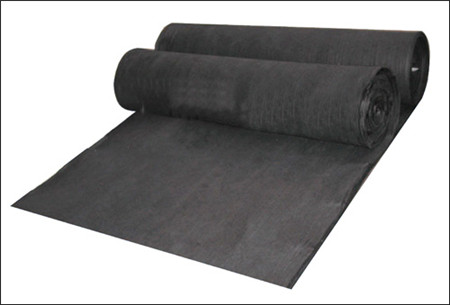

carbon fiber felt detail

carbon fiber felt detail

carbon fiber felt detail

carbon fiber felt detail
