WATER COOLING SYSTEM

Closed Wet Evaporative Type  Cooling Tower


Application

Since high amounts of electricity can generate a tremendous amount of heat, an entire induction system is water-cooled. We offer a variety of water cooling towers, fluid coolers and chillers ideal for cooling the water as it recirculates through your induction system. We will provide you with the best water cooling solution for ensuring that the power supplies, coils and furnaces in your induction system are being properly water cooled so that your induction equipment remains at safe temperatures during operation.

water cooling towers

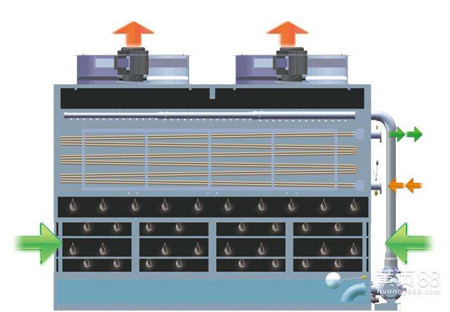

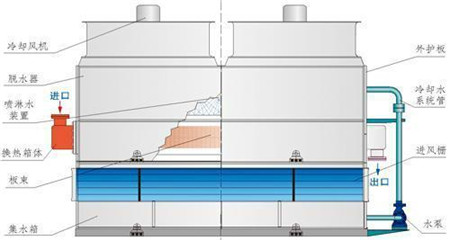

 Working principle:

● Closed wet evaporative type cooling tower is the combination of cooler and wet cooling tower. The inside tube flow water and outside flow water formed a closed cycle without connection and this method used for all kinds of cooling system require high quality of water.
● The water in the tank pumped out by the recycle pump and then spray down by the cooler. The heat exchange happen between the outside water and inside tube water and with the help of evaporation of water below the tube, the heat transfer effect are greatly enhanced.


Features

●Increased productivity, with softened water recycle added, there is no scaling, no blockage, no waste.
●Full closed type recycle with no impurities, no medium evaporation and no pollution.

 Installation:

● Closed type cooling tower are proper to be installed in the rainproof shelter or indoor room which have good ventilation condition with outside environment. The space of exhaust air must more than 2m.
● For the equipment room which don’t have good ventilation, we suggest to add wind tunnels to exhaust the hot air from the furnace to the outdoor.

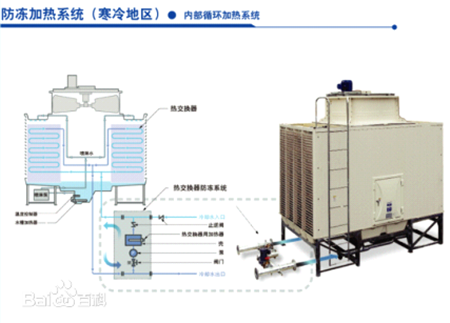

● For the equipment installed at outdoor, please add antifreezing solution to the water tank or spray water tank when the temperature is below 0℃ in the winter.

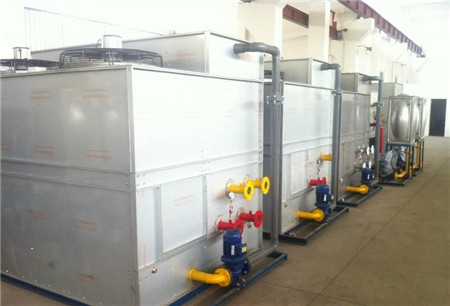

water cooling towers details01

water cooling towers details02

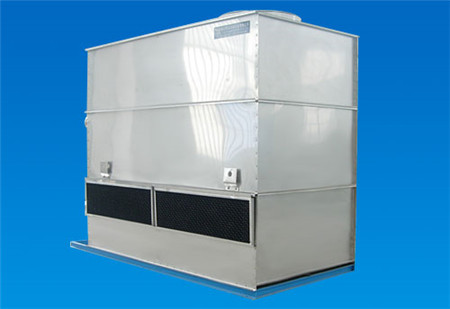

water cooling towers details03

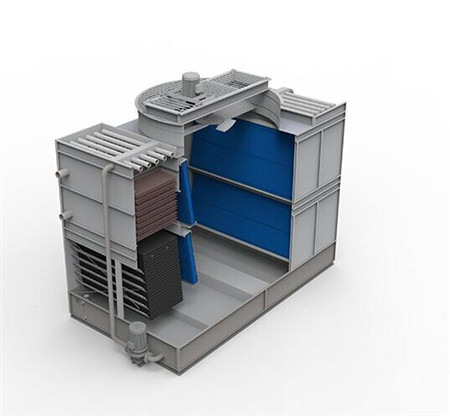

water cooling towers details04

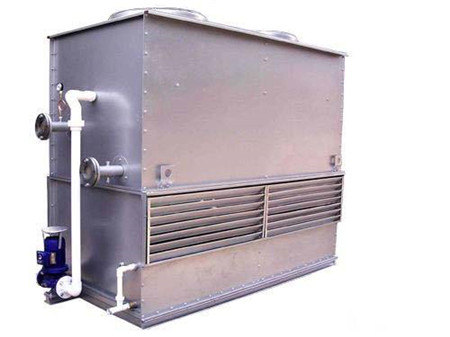

water cooling towers details05

water cooling towers details06
